A-JOINT TRAFFIC
All products A-JOINT TRAFFIC

A-JOINT TRAFFIC

Video of the installation Steps Calculator More information

A-JOINT®TRAFFIC is a heavy-duty paving joint mortar which has
been specially developed for public areas. It is designed for traffic
loads of up to 40 t, is sweeper-suction machine resistant and at the
same time frost and de-icing salt resistant. Due to its high flowability
and self-compacting properties, A-JOINT®TRAFFIC can be used for
joints as small as 5 mm. Due to its fast curing, the grouted surface
can be walked on after only 6 hours and driven on after 24 hours.

A-JOINT®TRAFFIC can be used universally for everything from new grouting to the renovation of existing surfaces, thereby reducing
maintenance costs and the risk of accidents caused by loose stones.

A-JOINT®TRAFFIC is particularly suitable for heavily frequented
squares, public roads and paths as well as for use in paved gully &
road drainage areas.

VARIANTE

Neutral
Basalt
Stone grey
Sustainable, weed-free joint solution up to use class N3 with fast traffic release
For joint widths from 5 mm
For joint depths from 30 mm
High-strength and self-compacting
Can be applied in drizzling rain and at ground temperatures from 0°C
No cement film/haze, very low water consumption during application
System
2-component epoxy resin mortar
Working time at 20°C
approx. 20-30 minutes
Working temperature
> 0°C, max. 30°C
Release of the surface at 20°C
walkable after 6 hours, trafficable after 24 hours
Delivery form
27.5 kg bagged goods
Shelf life
24 months in the original sealed product packaging, dry and frost-free
Compressive strength
52,3 N/mm² laboratory value, construction site value 39,0 N/mm²
Flexural strength
18,3 N/mm² laboratory value, construction site value 16,0 N/mm²
Static modulus of elasticity
8700 N/mm²
Solid mortar density:
1,68 kg/dm³
Water permeability
2,0 x 10-5m/s (with 10 % joint content approx. 0,14 l/min/m² depending on compactioning)

Calculator for this product

  1. 1

    Pre-wetting

    Pre-wetting
  2. 2

    Mixing

    Mixing
  3. 3

    Filling the joints

    Filling the joints
  4. 4

    Cleaning medium-coarse broom

    Cleaning medium-coarse broom
  5. 5

    Final cleaning fine broom

    Final cleaning fine broom

Processing instructions

Prepare:

The joints must be cleaned of weeds, roots and loose parts and cleared to a depth of at least 30 mm or, in case of traffic load, to 2/3 of the stone height. The surface to be grouted must be free from all dirt. Adjacent areas that are not to be grouted should be masked or covered. To avoid settling and loose stones, we recommend a permanently water-permeable and load-bearing substrate corresponding to the subsequent load (pay attention to the current standards and guidelines). We generally recommend the bonded construction method.

Pre-wetting:

Pre-wet the entire surface extensively. Higher soil temperatures and absorbent, open-pored stone require more intensive pre-wetting. Generally, use clean and cold water.

Mixing:

Open the bag and pour the sand into a suitable mixing container. Add the contents of the separately supplied bottle containers completely. Fill and cap the emptied bottles with 0.5 litres of water each, shake vigorously and add to the mixture. Make sure that the bottles are completely empty. Use a professional stirring or mixing device. Start the mixing process. After 3 minutes mixing time, add another 2.0 litres of water and mix thoroughly for another 3 minutes until a creamy, flowing mass is obtained.

Filling the joints:

Pour the finished mixture onto the well pre-wetted surface. Carefully work in the joint compound with a rubber squeegee, as diagonally as possible to the joint. Keep the surface constantly wet during this work.

Cleaning the surface:

After approx. 10-20 minutes, sweep the stone surface carefully and diagonally to the joint, using a medium-coarse street broom. If white gel-like streaks form on the stone surface, the correct sweeping time has not yet been reached. Then remove the remaining mortar residues with a fine coconut broom. Do not use swept-off material any more. Make sure that chamfers (bevelling of the side edges) on slabs and pavers must be exposed.

After-treatment:

Protect the freshly grouted surface from rain for 12-24 hours. We recommend using construction foil or tarpaulins as rain protection. To allow sufficient air to circulate, the rain protection must not be placed directly on the surface. At temperatures around 20°C, the surface can be walked on after 6 hours and driven on after 24 hours. A strength test is recommended before use. Cleaning work may be carried out after 7 days at the earliest.

Resin film: After grouting with A-JOINT® TRAFFIC a thin resin film remains on the stone surface, which intensifies the stone colour and protects the stone from dirt. This film usually disappears over time due to weathering and use of the surface. If in doubt, create a small test area. The synthetic resin film is not a design defect, as neither the quality nor the functionality of the joint is affected.

Application notes: Use A-JOINT® TRAFFIC only with a stable, load-bearing and permanently water-permeable substructure or a slope of at least 2%. The application is only recommended in well ventilated areas. Please wear adequate protective clothing. Tools should be cleaned with water during and after application.

Regularly remove dirt, leaves and moss from the joint surface.

All fillers are natural products and are subject to natural colour variations. Our information is based on years of experience and the current state of the art, but is non-binding and does not constitute a contractual legal relationship.

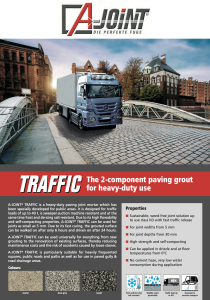

PDF Preview
A-JOINT-Produktinformation-Traffic-GB.pdf (562 KB)
Download the PDF
